About the X-Jet M5 Injection Nozzle
The X-Jet M5 or M-Jet Spray Nozzle works just like the original, but the close range nozzle is replaced with a built-in adjustable nozzle. Use this to remove mold, dirt, and mildew from buildings without needing a ladder or scaffolding. Project chemicals and liquids to vertical heights of 40 feet at 0° with a simple twist. Use this on jobs when you don't need the impact of the original X-Jet. This nozzle will inject and proportion soaps, chemicals, or other liquids at high pressure. You don't even have to run them through your hose, pump, lance, etc causing damage with caustic chemicals. This is compatible with most pressure washers, hot or cold, from 1000 PSI to 6000 PSI, and with a Max Temperature of 190° F. The vertical height is determined by the power of your pressure washer.

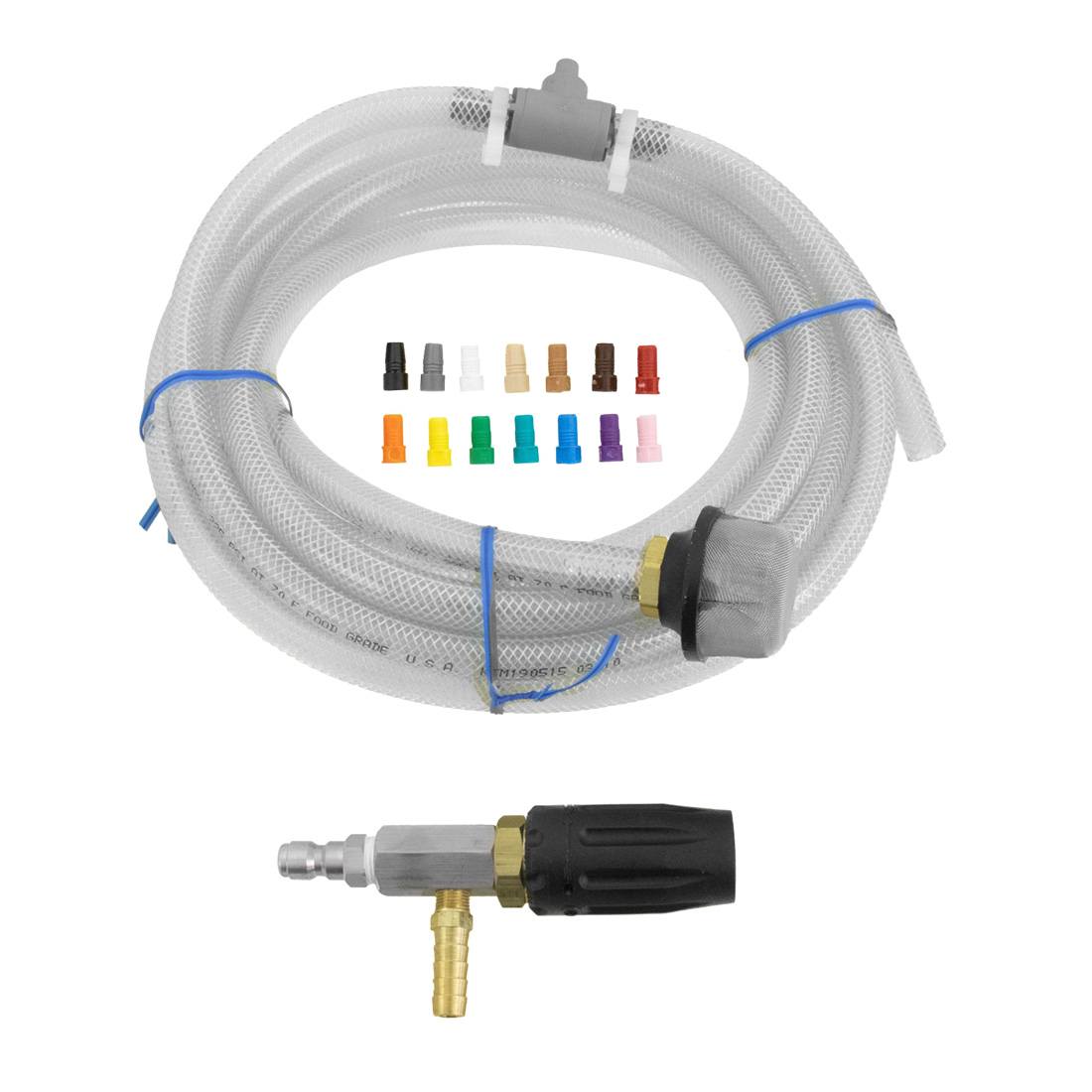

Includes:

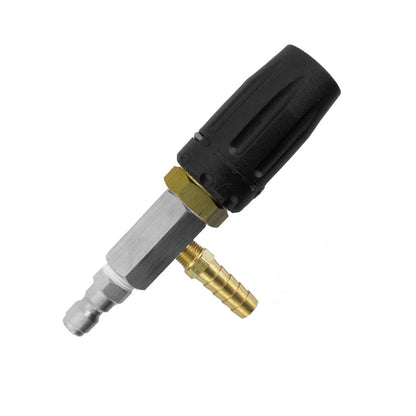

- Long Range Nozzle with Variable Fan Patterns
- Quick Connect Plug on Inlet of Nozzle
- Hose Barb for Chemical Injection
- 14 Chemical Proportioners

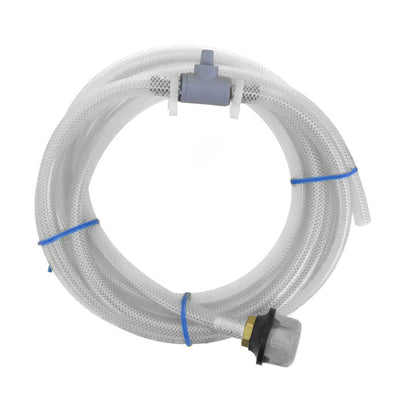

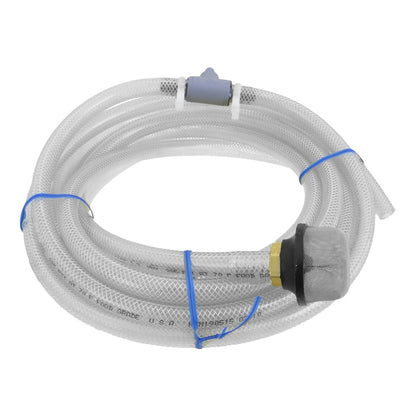

- 15 Feet of Clear Vinyl Tubing

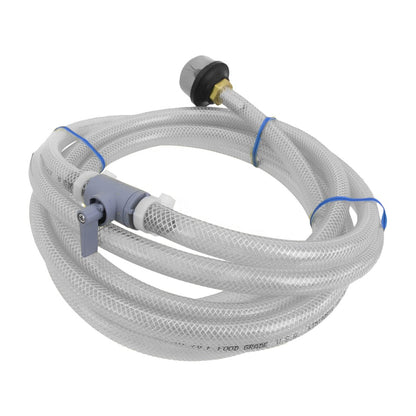

- Ball Valve for Shut Off
- Filter with Hose Barb
Kit does not include a short range nozzle
Check out the details of each kit below:
| X-Jet Kit | GPM | PSI |
|---|---|---|
| X-Jet M5 Injection Nozzle - #7 | 1 - 2.8 | 2000 - 3000 |
| X-Jet M5 Injection Nozzle - #9 | 3 - 3.5 | 2000 - 3000 |
| X-Jet M5 Injection Nozzle - #13 | 4 - 4.5 | 2500 - 4000 |
| X-Jet M5 Injection Nozzle - #16 | 5 - 6.5 | 2500 - 4000 |
| X-Jet M5 Injection Nozzle - #20 | 7 - 8 | 2500 - 4000 |
Use this chart and your Color-Coded Proportioners for the perfect ratio of Water to Chemical Mix.
| Color | 2 GPM | 3 GPM | 4 GPM | 5 GPM | 6 GPM | 8 GPM |
|---|---|---|---|---|---|---|
| Open | .8 - 1 | 1.2 - 1 | 1.6 - 1 | 2 - 1 | 2.4 - 1 | 3 - 1 |
| Gray | 1.4 - 1 | 2 - 1 | 2.5 - 1 | 3 - 1 | 4 - 1 | 4.9 - 1 |
| Black | 3 - 1 | 4 - 1 | 5 - 1 | 6.5 - 1 | 8 - 1 | 11 - 1 |
| Beige* | 6 - 1 | 8 - 1 | 10 - 1 | 13 - 1 | 16 - 1 | 20 - 1 |
| Red* | 9 - 1 | 12 - 1 | 16 - 1 | 20 - 1 | 24 - 1 | 28 - 1 |
| White | 16 - 1 | 22 - 1 | 30 - 1 | 38 - 1 | 45 - 1 | 51 - 1 |
| Blue | 20 - 1 | 27 - 1 | 37 - 1 | 46 - 1 | 55 - 1 | 61 - 1 |
| Tan (Med) | 28 - 1 | 38 - 1 | 50 - 1 | 64 - 1 | 77 - 1 | 85 - 1 |
| Green | 31 - 1 | 42 - 1 | 57 - 1 | 70 - 1 | 85 - 1 | 90 - 1 |
| Orange | 35 - 1 | 48 - 1 | 64 - 1 | 80 - 1 | 96 - 1 | 102 - 1 |
| Brown | 48 - 1 | 66 - 1 | 88 - 1 | 110 - 1 | 133 - 1 | 145 - 1 |
| Yellow | 70 - 1 | 96 - 1 | 128 - 1 | 158 - 1 | 191 - 1 | 215 - 1 |
| Aqua | 94 - 1 | 128 - 1 | 170 - 1 | 215 - 1 | 257 - 1 | 284 - 1 |
| Purple | 146 - 1 | 200 - 1 | 240 - 1 | 300 - 1 | 400 - 1 | 501 - 1 |
| Pink | 280 - 1 | 353 - 1 | 500 - 1 | 480 - 1 | 766 - 1 | 906 - 1 |
*Typically used when applying undiluted House Wash or 12.5% Sodium Hypochlorite
| SKU | 025-52-25 |
| Manufacturer Part Number | XJETM5-07K |
Questions & Answers
Have a Question?
-
I have a Kranzle 1122tst 1200psi 2.0 gpm Is this enough power for this to pull bleach
With the set up you have, we would recommend working with the #7 nozzle.
-
hello i have a 3600 psi washer 2.5 gpm what kit would you recommend for me?
#7 is the right choice for you!
-
My pressure washer is 2.8 gpm 3400 psi. Should I get 7, 9 or 13?
You would want to select #7. This is always determined by the gpm of the system.
-
Will the XJet M5 #13 handle a 4300 PSI pressure washer?
With this X-Jet, the best option is to go by your GPM, not PSI.
-
I have a 3800 PSI, 3.6 GPM Westinghouse. Would I round up to the #13 nozzle or down to the #9 nozzle?
Great question! The #9 would be your best option for your set up.
-
Hello, I have a 2.5 gpm, 3,500 psi pressure washer. Is there an appropriate size?
#7 but with a gpm that low it may not work very well. We would not suggest this product for a GPM that low.
-
What is the inner diameter of the clear hose?
The hose accommodates a 3/8" barb
-
Hello I have a 3200 psi and a 2.8 gpm pressure washer which x jet # should I get?
Nozzle #7 is your best option. Gpm is the important factor with this product.
-
Hi I have machine 4000 psi 3.5 gpm What x jet # would you recommend to buy?
We always suggest to go by your gpm with this product, so for you the #9 would be your best option.
-
I have a 4000 PSI 4GPM what x-jet would you recommend?
Nozzle #13 to accomodate your GPM.
-
So I have a 2.6 gpm 3400 psi pressure washer. What nozzle will work the best?
Closest suggestion would be the #9, or #7 but with a gpm that low it may not work very well. We would not suggest this product for a GPM that low.
-
I have a 3.5 gpm, 4000 psi machine. Should I use #9 or #13?
We would suggest the #9 to accommodate the gpm of your machine.
-
What x-jet m5 do I need? I have a 2.3 gpm 3000psi
Closest suggestion would be the #9, or #7 but with a gpm that low it may not work very well. We would not suggest this product for a GPM that low.
-
I have a smaller pressure washer. 3100 PSI AND 2.3 can I use one of these
-
How can you tell which nozzle you received? Received the xjet as a gift. I have a 2.5 gpm so I guess that would fall under nozzle #7? There's no information listed regarding Nozzle #7.
Correct, if your GPM is 2.5, #7 would work best.
-
I have a mega shot 3200 psi 2.5 gpm with a Honda engine would I be able to use the x jet?
Hi there, the issue may exist with your PSI. It might be too strong. If you view the chart on the product page, it tells you which nozzle is compatible with which GPM and PSI.
The closest you could get would be with the X-Jet M5 Injection Nozzle #9.
The GPM for that is 3-3.5, PSI 2000-3000.
Everything else requires a higher GPM. I would not recommend this product for your current equipment. -
For a 2.8, 3200 psi pressure washer, would I want the #7 or the #9?
Hi there, we would recommend #9.
-
It seems this is a siphon set up for chemicals? I remember one version that comes with your pressure washer when I used to buy smaller 4 gpm 4000 psi machines but the mix rate was like 20 :1.or greater. Not quite the strength needed for effective soft washing on really soiled surfaces. . Can this replace soft washing pump machines ? What might the mix rate be? Thanks so much for your time. Always wanting to learn.....
The XJet is set up for chemical application. By drawing straight 12.5% sh from the bucket, you will be hitting the surface with about 3.5% sh. This is good for decks, fences, brick, stucco - where a higher concentration is often needed. The one application it is not ideal for is roof cleaning, which usually requires 4-6% mix. Therefore, a 12v pump is the next step up to get the higher concentration. Most vinyl, wood, and aluminum siding can be down-streamed effectively.
