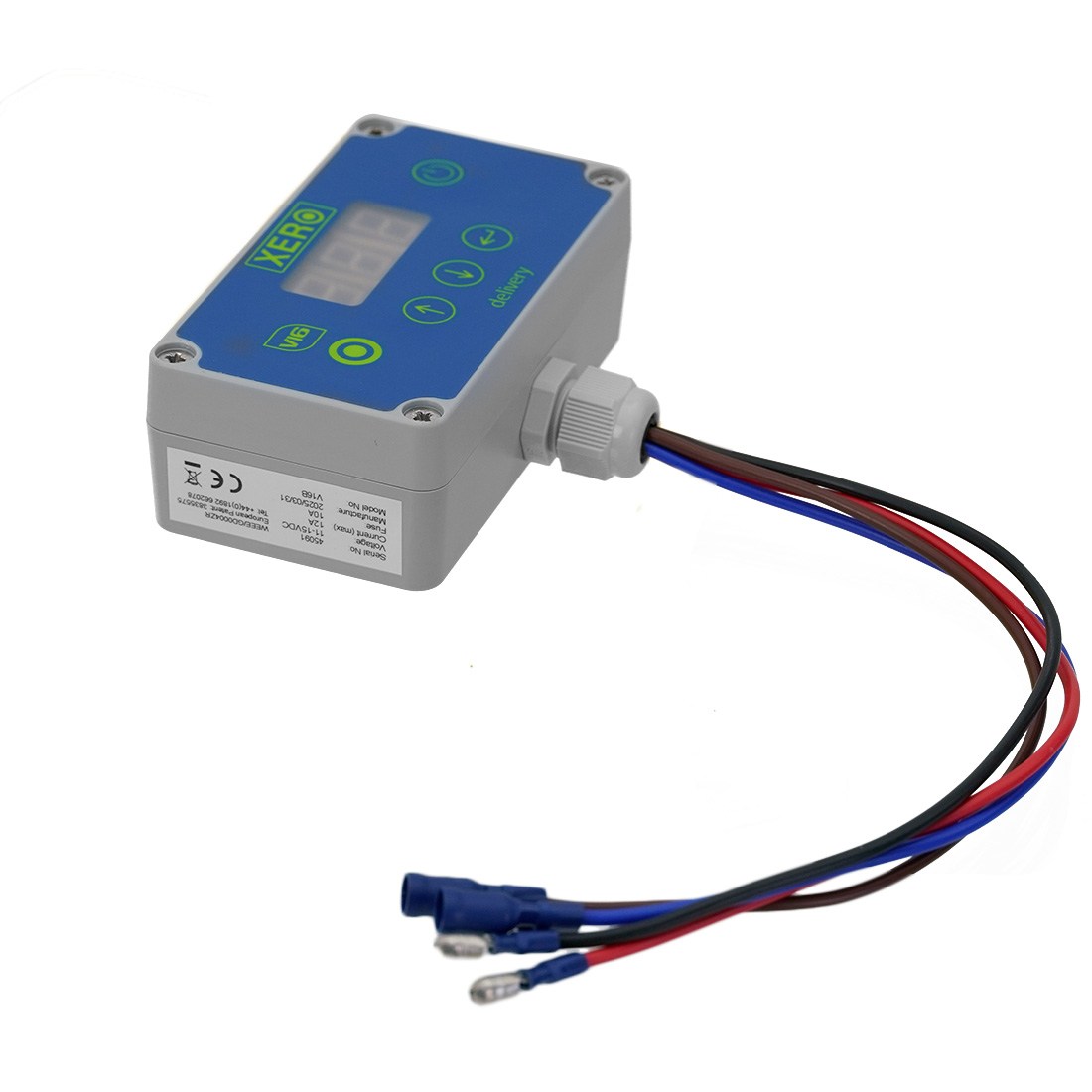

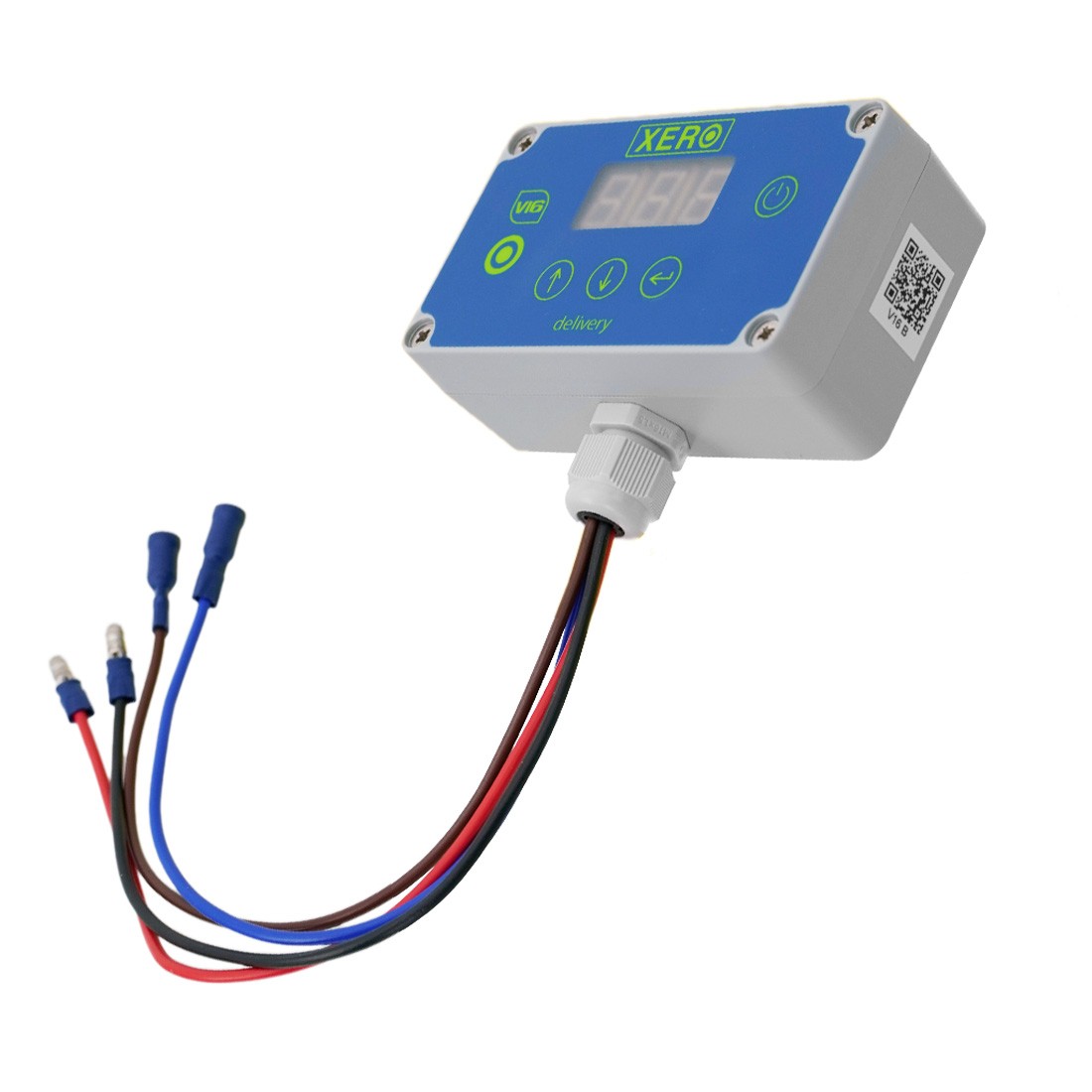

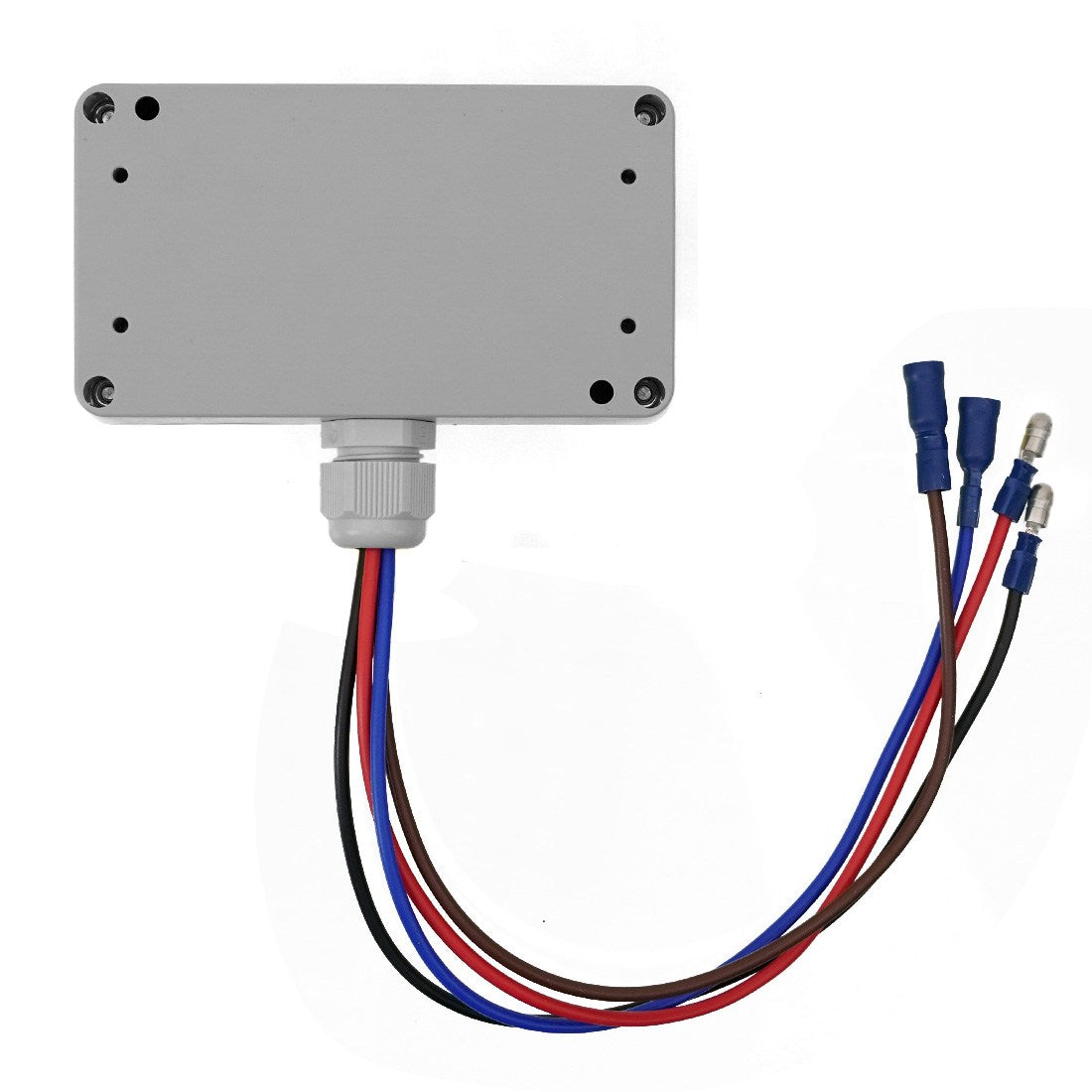

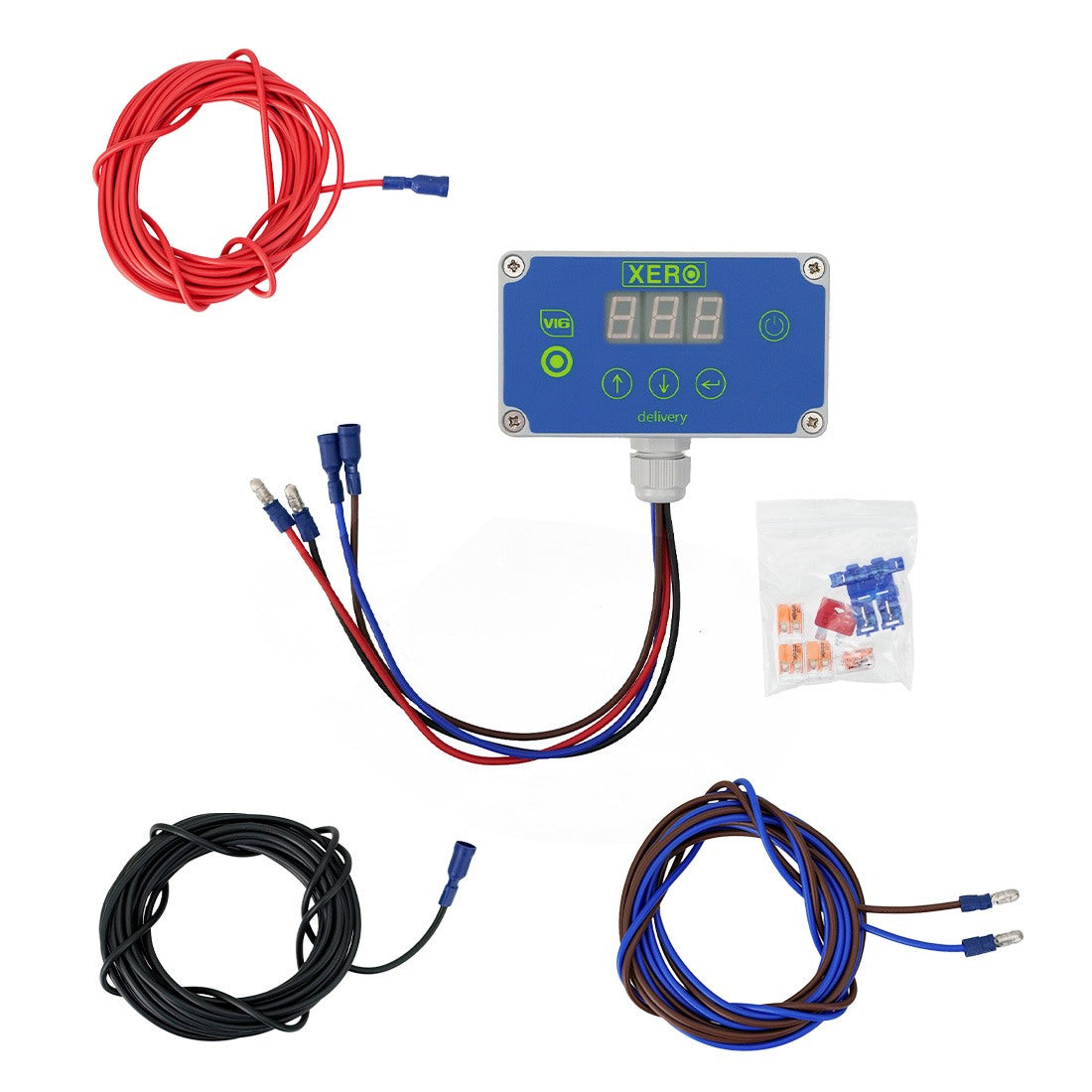

About the XERO V16 Digital Pump Controller

Take full control of your water fed pump with the XERO V16 Digital Pump Controller. Designed for precision and efficiency, this controller allows you to adjust your pump’s flow rate anywhere from 0% to 100%, delivering the output you need for any job.

Features:

Automatic Flow Management -The V16 automatically pauses when water flow stops and resumes when it starts again. This feature helps protect your equipment and extends the life of your system.

System Monitoring - Built-in indicators display battery voltage and signal when the pressure switch is activated, giving you real-time feedback on your system’s status.

PumpSmooth - An advanced pump drive system runs the pump more smoothly and quietly, while also extending its lifespan. With the V16, your pump can be driven slower, faster, and harder than with previous controllers.

PolarityProtect - The V16 is protected against incorrect wiring. If connected improperly, the unit simply won’t function. Once rewired correctly, it recovers automatically without sustaining damage.

PumpPrecision - Enhanced pump control technology allows for highly accurate monitoring, helping to reduce water and energy usage. It also improves dead-end detection for quicker response.

PumpProtect - This intelligent safety system includes dead-end detection, pressure switch shutdown, over-current detection, and short-circuit protection. These features help safeguard your equipment and conserve resources.

Installation:

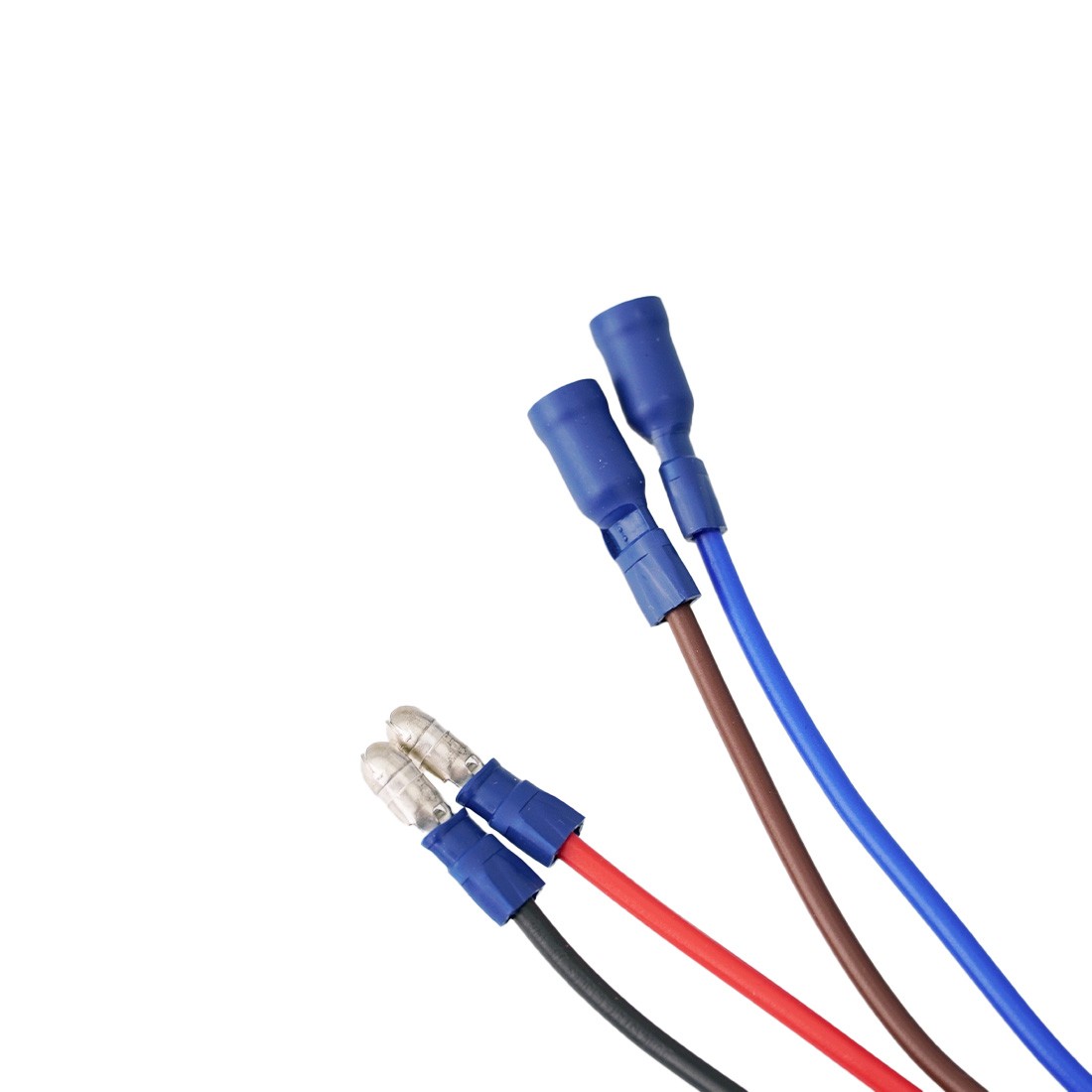

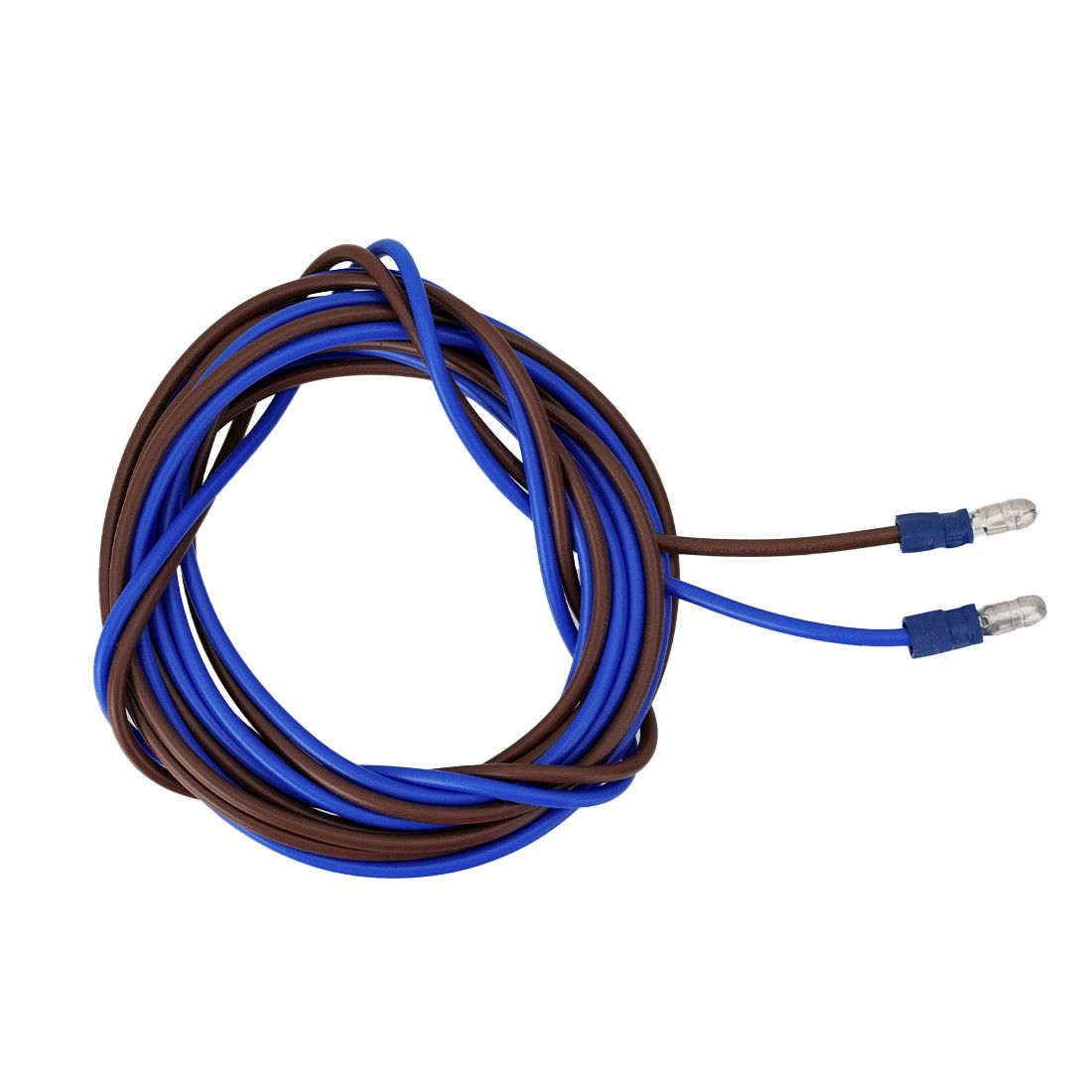

Connect Controller Wires:

• Attach the brown wire from the controller to the red wire on the pump.
• Attach the blue wire from the controller to the black wire on the pump.

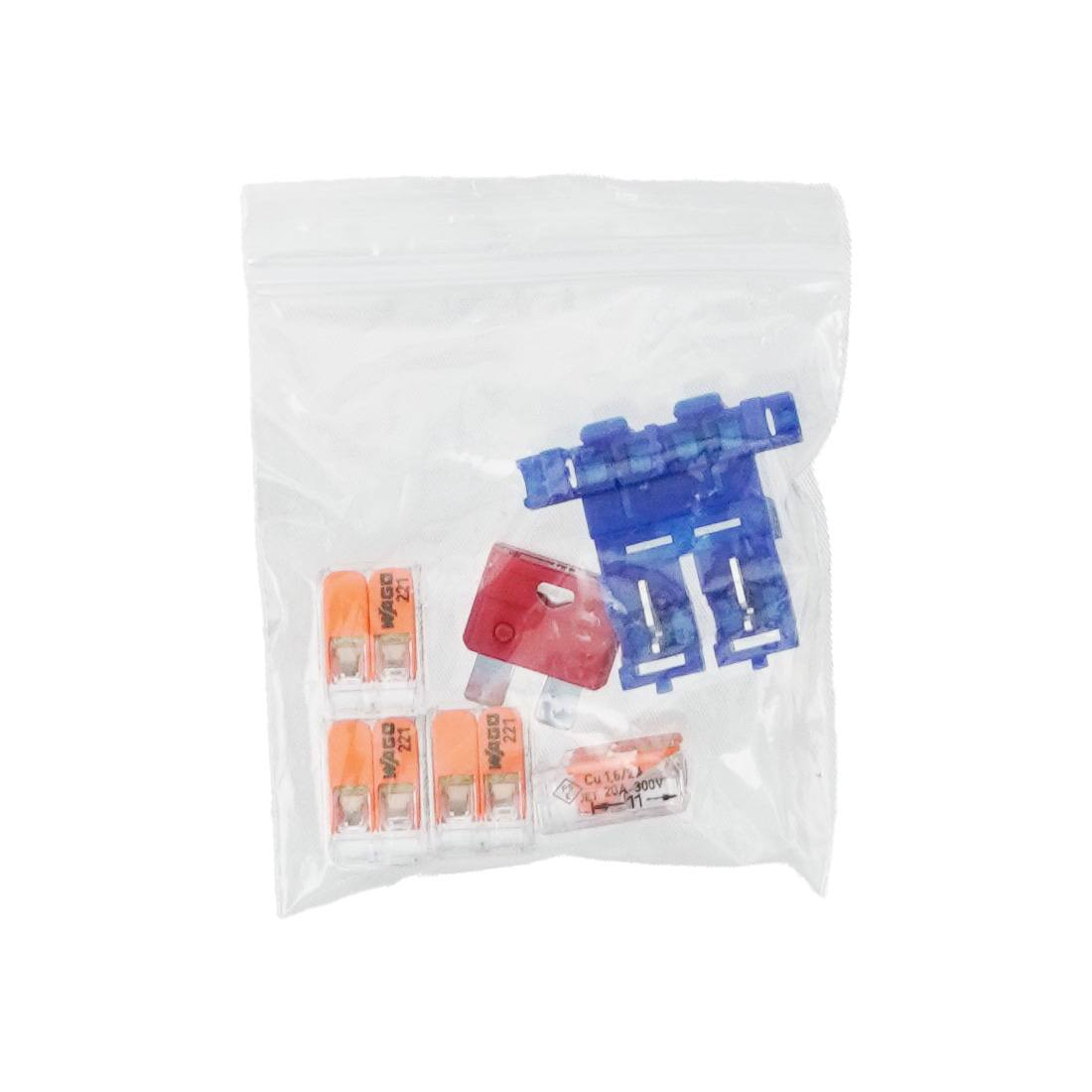

Install the Fuse Holder:

• Place the fuse holder near the battery end of the red wire.
• Cut the red wire and insert both ends into the fuse holder.
• Use pliers to close and hold securely.

Connect to Battery:

• Attach the black wire to the negative battery terminal.
• Attach the red wire to the positive battery terminal.

Insert the Fuse:

• Only insert the fuse after all wiring connections are complete.

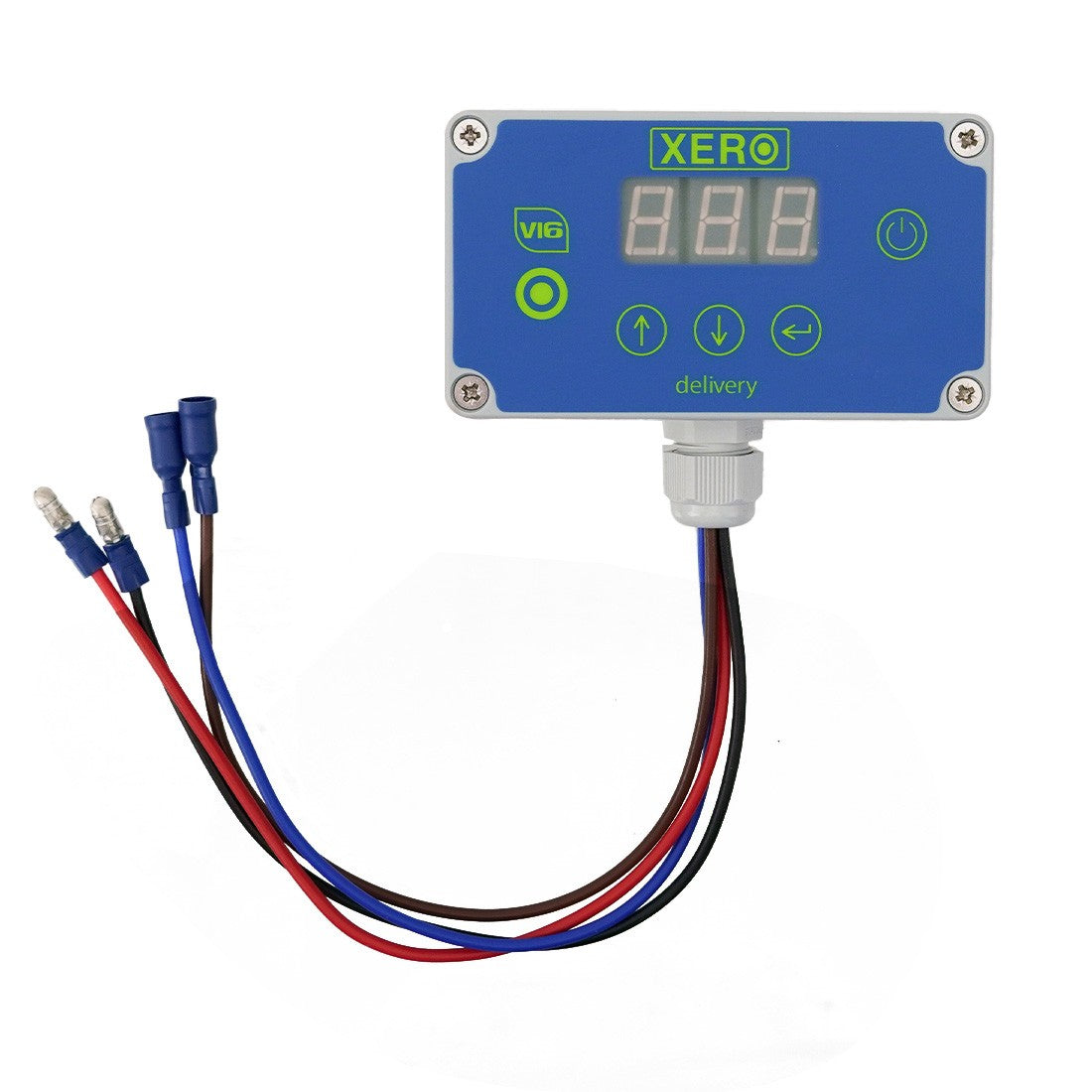

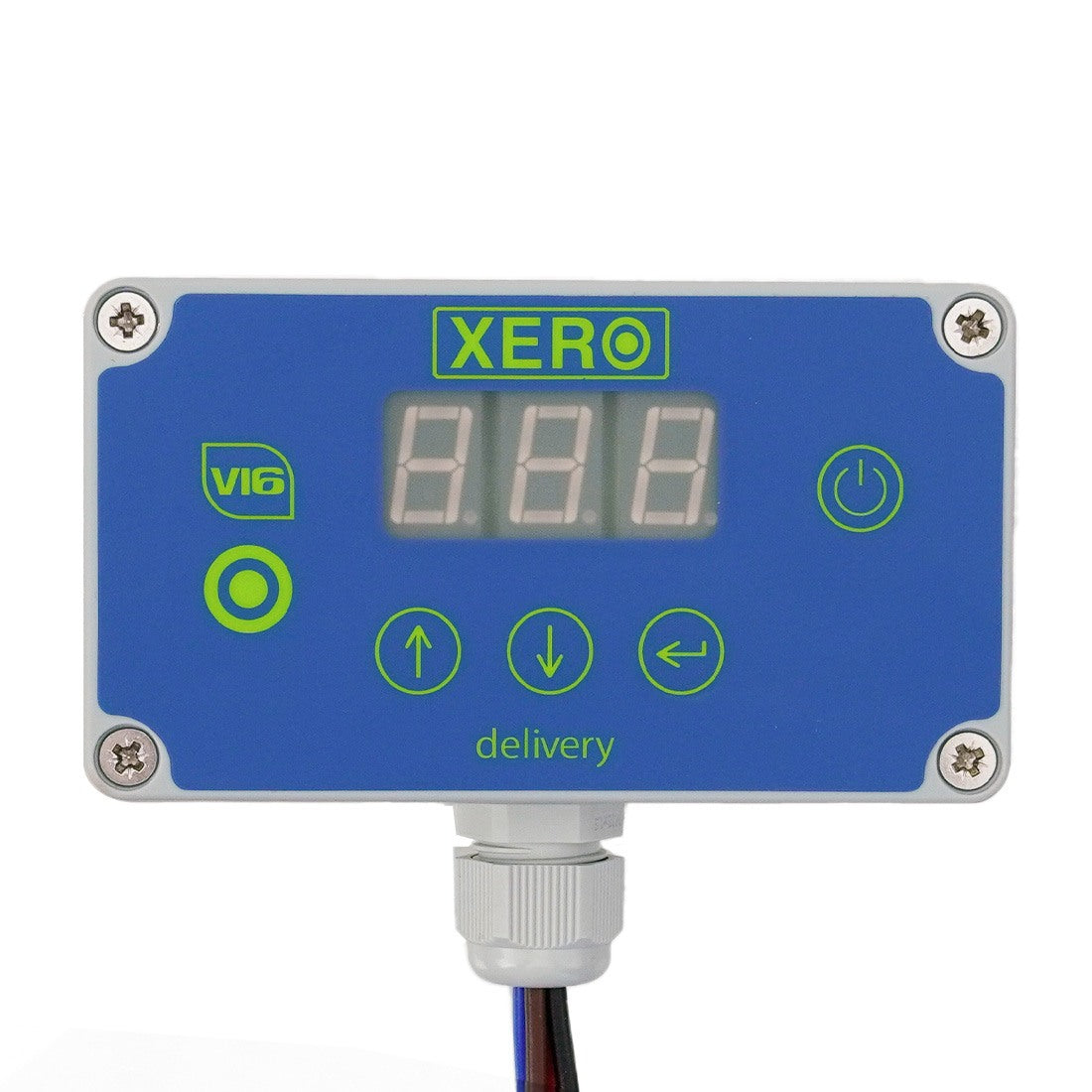

Controller Operation:

• Power On/Off: Press the power button to turn the unit on or off.
• Adjust Flow Rate: Press the up button to increase flow and the down button to decrease it.

PRODUCT HIGHLIGHTS

• Controls flow
• Auto pause and restart
• Monitors battery and pressure
• Smooth quiet pump operation
• Wiring protection
• Precise water and energy use
• Dead-end detection
• Over-current and short-circuit protection
• Extends pump life
• Easy button control
