X-Jet Original Injection Nozzle
X-Jet Original Injection Nozzle
Couldn't load pickup availability
About the X-Jet Original Injection Nozzle
The X-Jet Long Range Injection Nozzle allows you to project chemicals vertically up to 40 feet or more, depending on the power of your pressure washer. You don't have to run caustic chemicals through your pumps, hose reels, guns, lances, or quick connects destroying them anymore. Instead, use the color-coded proportioners to inject and proportion soaps, chemicals, or other liquids at high pressure. Apply soap and rinse with the same nozzle! Easily wash and remove mold, dirt, and mildew from structures without needing ladders or scaffolding. This has fixed long-range and short-range spray patterns. The X-Jet Nozzles work with almost any pressure washer, hot or cold, from 1000 PSI to 6000 PSI, with a Max Temperature of 190° F.

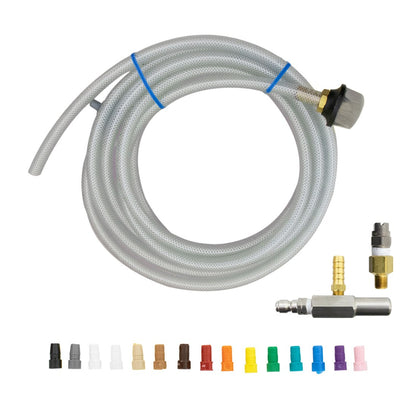

Includes:

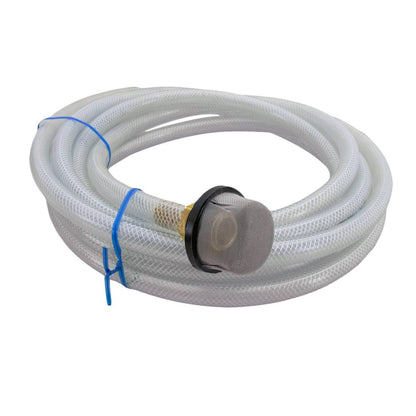

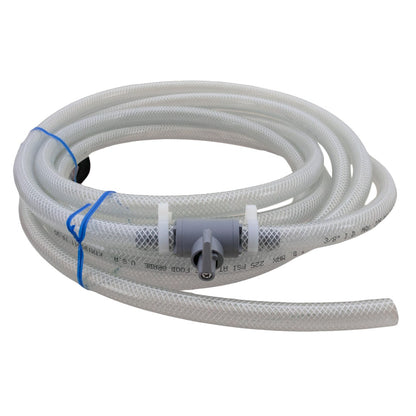

- 15 Feet Clear Vinyl Tubing
- X-Jet Long Range Nozzle

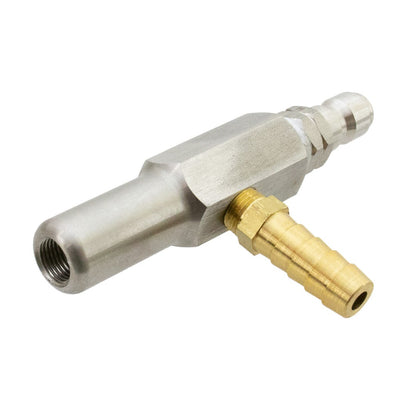

- Quick Connect Plug On X-Jet Inlet Hose Barb for Chemical Injection

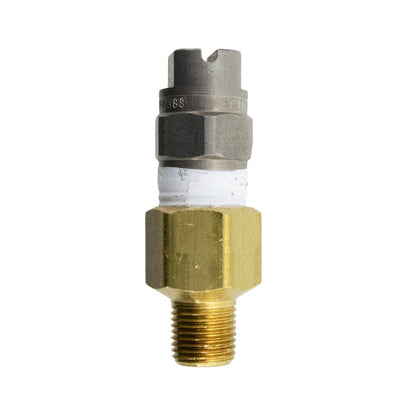

- Hose Spray Nozzle Orifice with Internal Low-Pressure Adapter
- Low-Pressure Soap Nozzle
- 14 Detergent Proportioners
- Shut Off Valve Filter Screen with Hose Barb
Check out the details of each kit below:
| X-Jet Kit | GPM | PSI |
|---|---|---|
| X-Jet Injection Nozzle - #7 | 2 - 2.5 | 2000 - 3000 |
| X-Jet Injection Nozzle - #9 | 3 - 3.5 | 2000 - 3000 |
| X-Jet Injection Nozzle - #13 | 4 - 4.5 | 2500 - 4000 |
| X-Jet Injection Nozzle - #16 | 5 - 6.5 | 2500 - 4000 |
| X-Jet Injection Nozzle - #20 | 7 - 8 | 2500 - 4000 |
Use this chart and your Color-Coded Proportioners for the perfect ratio of Water to Chemical Mix.
| Color | 2 GPM | 3 GPM | 4 GPM | 5 GPM | 6 GPM | 8 GPM |
|---|---|---|---|---|---|---|
| Open | .8 - 1 | 1.2 - 1 | 1.6 - 1 | 2 - 1 | 2.4 - 1 | 3 - 1 |
| Gray | 1.4 - 1 | 2 - 1 | 2.5 - 1 | 3 - 1 | 4 - 1 | 4.9 - 1 |
| Black | 3 - 1 | 4 - 1 | 5 - 1 | 6.5 - 1 | 8 - 1 | 11 - 1 |
| Beige* | 6 - 1 | 8 - 1 | 10 - 1 | 13 - 1 | 16 - 1 | 20 - 1 |
| Red* | 9 - 1 | 12 - 1 | 16 - 1 | 20 - 1 | 24 - 1 | 28 - 1 |
| White | 16 - 1 | 22 - 1 | 30 - 1 | 38 - 1 | 45 - 1 | 51 - 1 |
| Blue | 20 - 1 | 27 - 1 | 37 - 1 | 46 - 1 | 55 - 1 | 61 - 1 |
| Tan (Med) | 28 - 1 | 38 - 1 | 50 - 1 | 64 - 1 | 77 - 1 | 85 - 1 |
| Green | 31 - 1 | 42 - 1 | 57 - 1 | 70 - 1 | 85 - 1 | 90 - 1 |
| Orange | 35 - 1 | 48 - 1 | 64 - 1 | 80 - 1 | 96 - 1 | 102 - 1 |
| Brown | 48 - 1 | 66 - 1 | 88 - 1 | 110 - 1 | 133 - 1 | 145 - 1 |
| Yellow | 70 - 1 | 96 - 1 | 128 - 1 | 158 - 1 | 191 - 1 | 215 - 1 |
| Aqua | 94 - 1 | 128 - 1 | 170 - 1 | 215 - 1 | 257 - 1 | 284 - 1 |
| Purple | 146 - 1 | 200 - 1 | 240 - 1 | 300 - 1 | 400 - 1 | 501 - 1 |
| Pink | 280 - 1 | 353 - 1 | 500 - 1 | 480 - 1 | 766 - 1 | 906 - 1 |
* Typically used when applying undiluted House Wash or 12.5% Sodium Hypochlorite.
| SKU | 025-52-24 |
| Manufacturer Part Number | XJET-07K |
Questions & Answers
Have a Question?
-
I have a 2100psi, 1.2GPM pressure washer, which one should I get?
Thanks for reaching out! Unfortunately we would not recommend this for a unit that performs at less than 2 GPM, as it would not function properly.
-
How long for shipping
Most orders placed before 4:30pm are shipped same day, and depending on your location will be 1-2 days in the north east, and up to 5 days in transit on average to California. But we can also offer overnight shipping on certain orders.
-
My machine is 2.5 gpm at 3300 psi. Which should I get?
Thank you for reaching out! The #7 Nozzle is your best option.
-
So I have a 3500 psi machine doing 4.7 gpm what nozzle
#13 would work for you.
-
If my pressure washer psi is 3200 and 2.5 gpm what xjet number would I get for my machine?
We always recommend going by the GPM, so you would be looking at Nozzle #7.
-
What size orifice do i order to make my 2.4 gpm x-jet work on my new 4 gpm machine? We are talking about the machined part inside the jet, correct?
The #9 is for machines 2,000 - 3,000 psi. The #13 is for machines 3,000 - 4,000 psi.
