About the Summit SM Series - Aluminum Hose Reel with 1/2 Inch Inlet

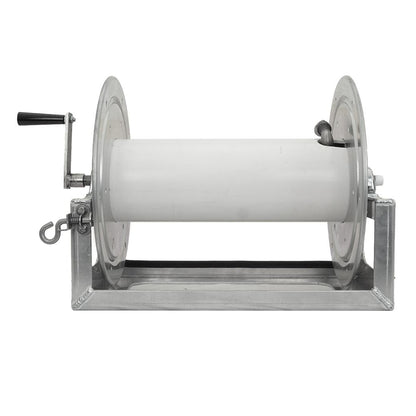

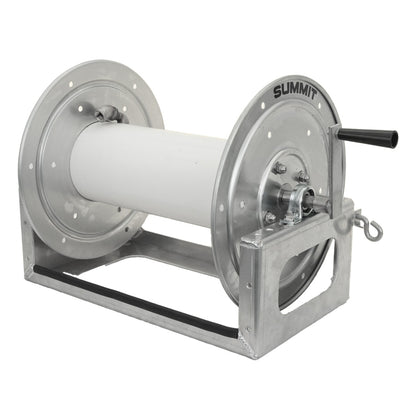

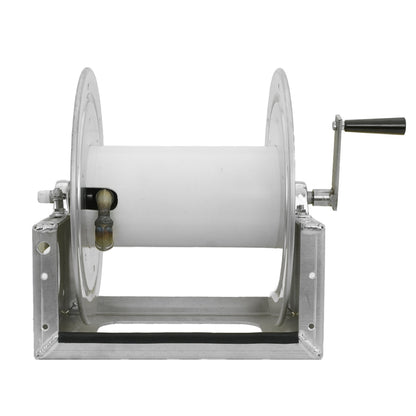

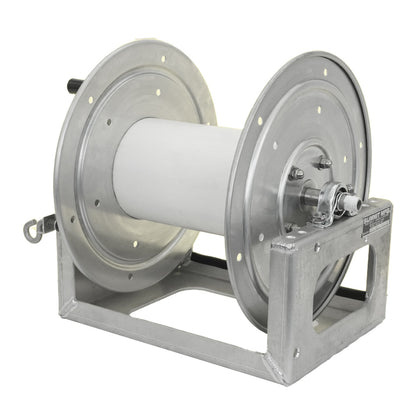

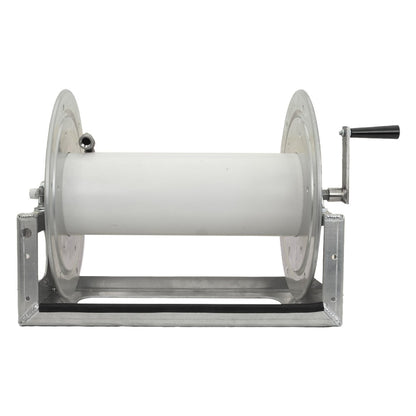

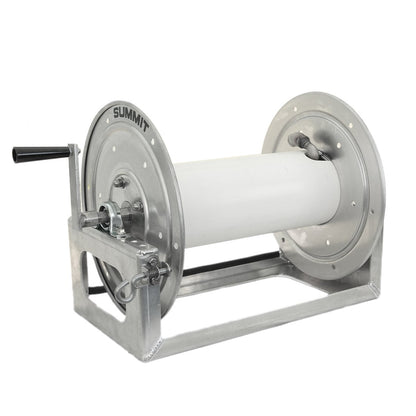

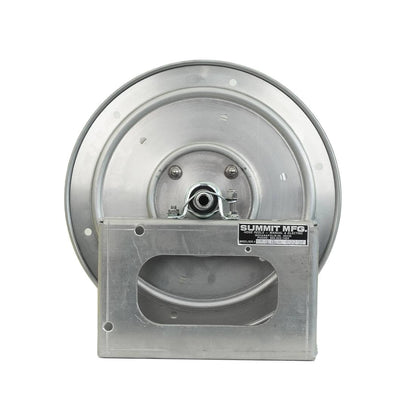

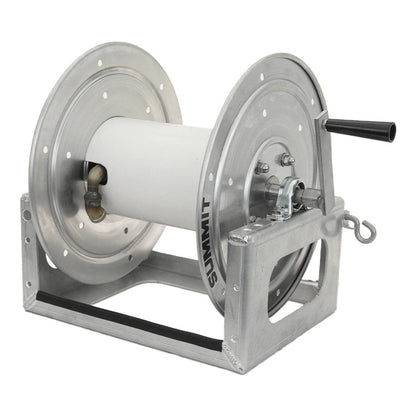

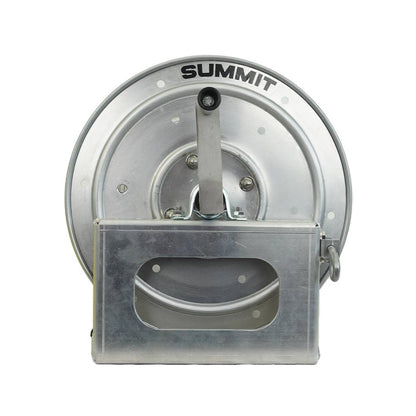

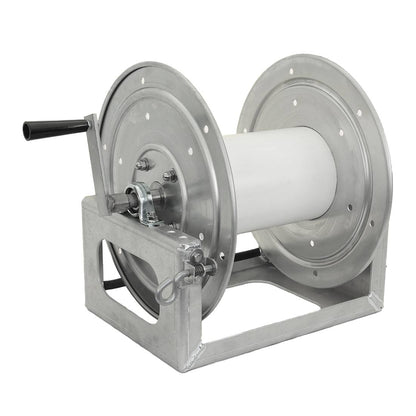

This sturdy aluminum Summit Hose Reel features a stainless steel crank handle with a free-turning hand grip. The SMA12 model fits 250 feet of 3/8 inch hose while the SMA18 fits 400 feet of 3/8 inch hose.
Model Dimensions and Weight
| Model Number | Height | Inner Height | Base Width | Top Width | Complete Base Width | Depth | Weight |
|---|---|---|---|---|---|---|---|
| SMA12 | 18 Inches | 6 Inches | 17 Inches | 12 Inches | 25 Inches | 17 Inches | 24 lbs |
| SMA18 | 18 Inches | 6 Inches | 23 Inches | 18 Inches | 31 Inches | 17 Inches | 27 lbs |
Hose Capacity in Feet
| Model Number | Hose with 1/4" ID | Hose with 3/8" ID | Hose with 1/2" ID | Hose with 5/8" ID | Hose with 1" ID |
|---|---|---|---|---|---|
| SMA12 | 425 Feet | 300 Feet | 200 Feet | 150 Feet | 70 Feet |
| SMA18 | 625 Feet | 450 Feet | 325 Feet | 250 Feet | 125 Feet |
| SKU | 031-25-33 |
| Manufacturer Part Number | SM 12 AL |
Questions & Answers
Have a Question?
-
I need only the side plates do you guys sell that separate?
Unfortunately, we do not sell the side plates separately.
-
What's the max psi? I have a 3600 5.5 gpm hotbox and will use definitely for downstreaming and softwash

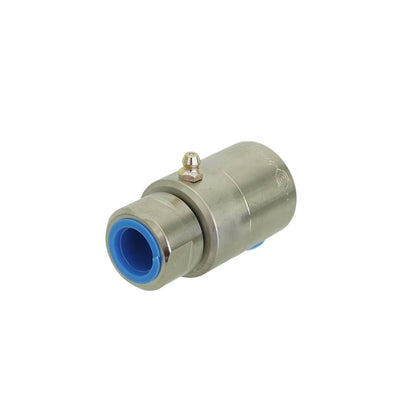

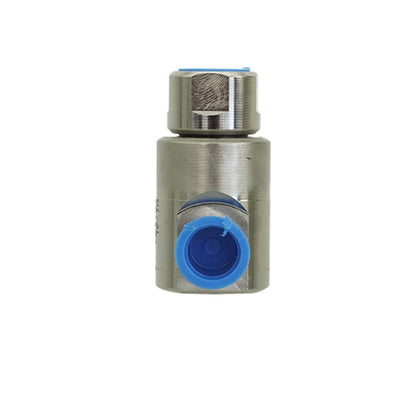

The swivel on the reel will hold up to 3500 psi
-
Is the manifold stainless steel or Steel
Stainless Steel
