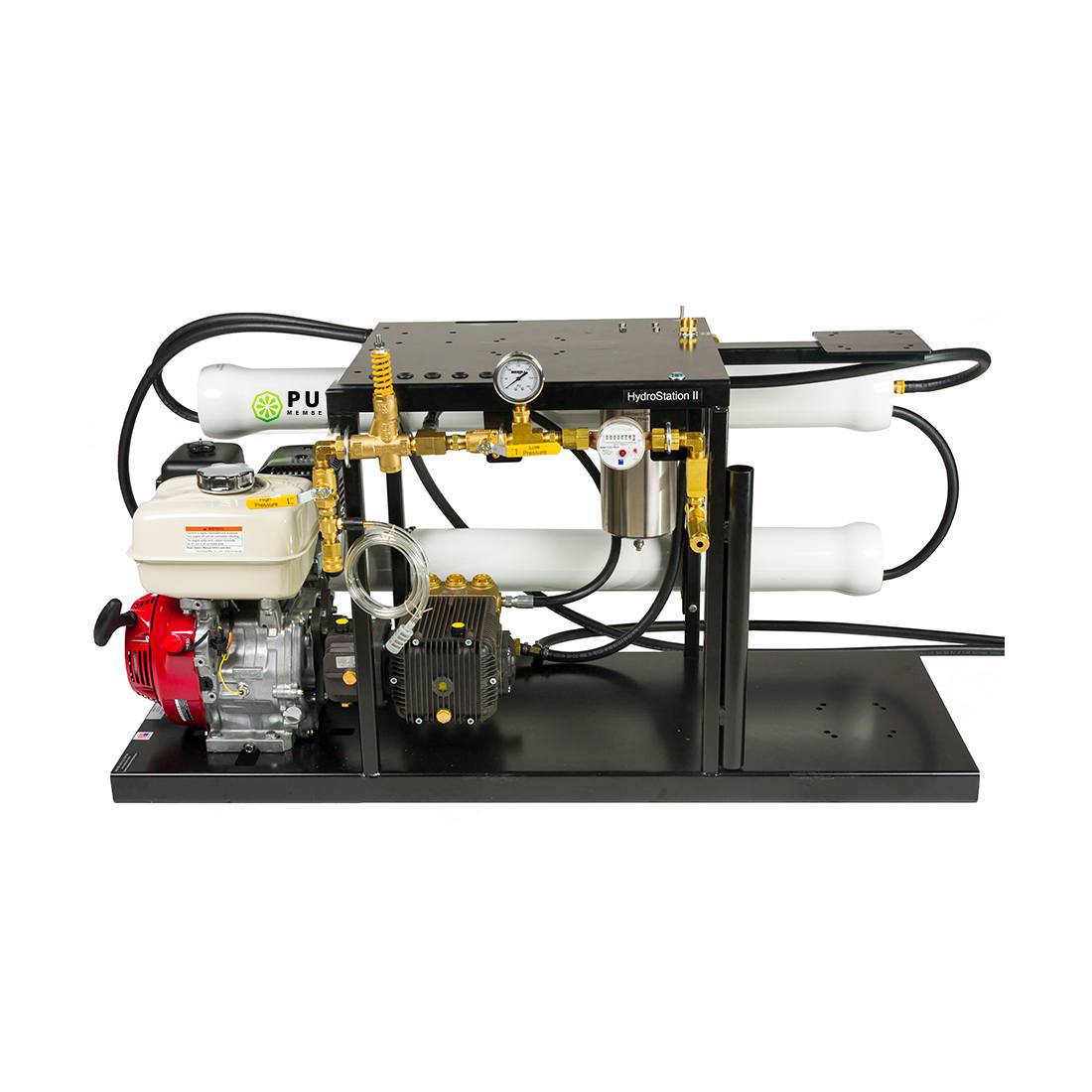

About the Pulex Hydro Station Double RO with Gasoline Engine and Pump

The Hydro Station from Pulex is a 4 stage filtration system capable of producing large amounts of purified water even in remote locations. A number of variations of this system are available for any purified water cleaning application. The Hydro Station can be mounted in an open or enclosed trailer or in the rear of a pickup truck.

The Hydro Station standard features include:

• Max Production: 4 GPM
• Number of users: 3
• Cleaning height: 5+ stories

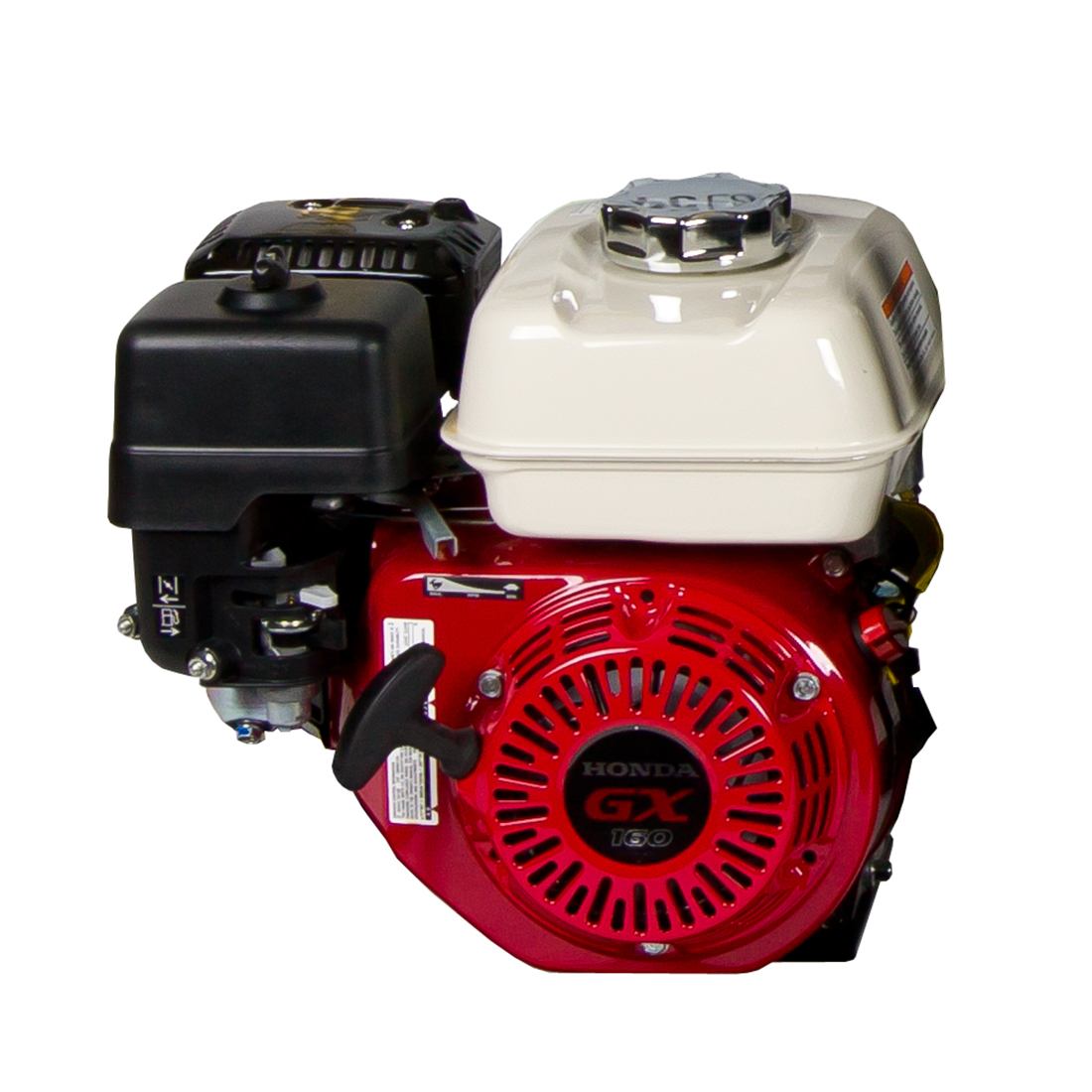

• Honda GX 160 Motor with Cat Pump. 1,500 PSI at 4 GPM
• 4" x 40" RO membrane
• 40" pressure vessel Sediment/Carbon filter (Provides up to 20,000 Gallons before replacement)
• DI cartridge

Available Extra Hydro Station Upgrades Include*:

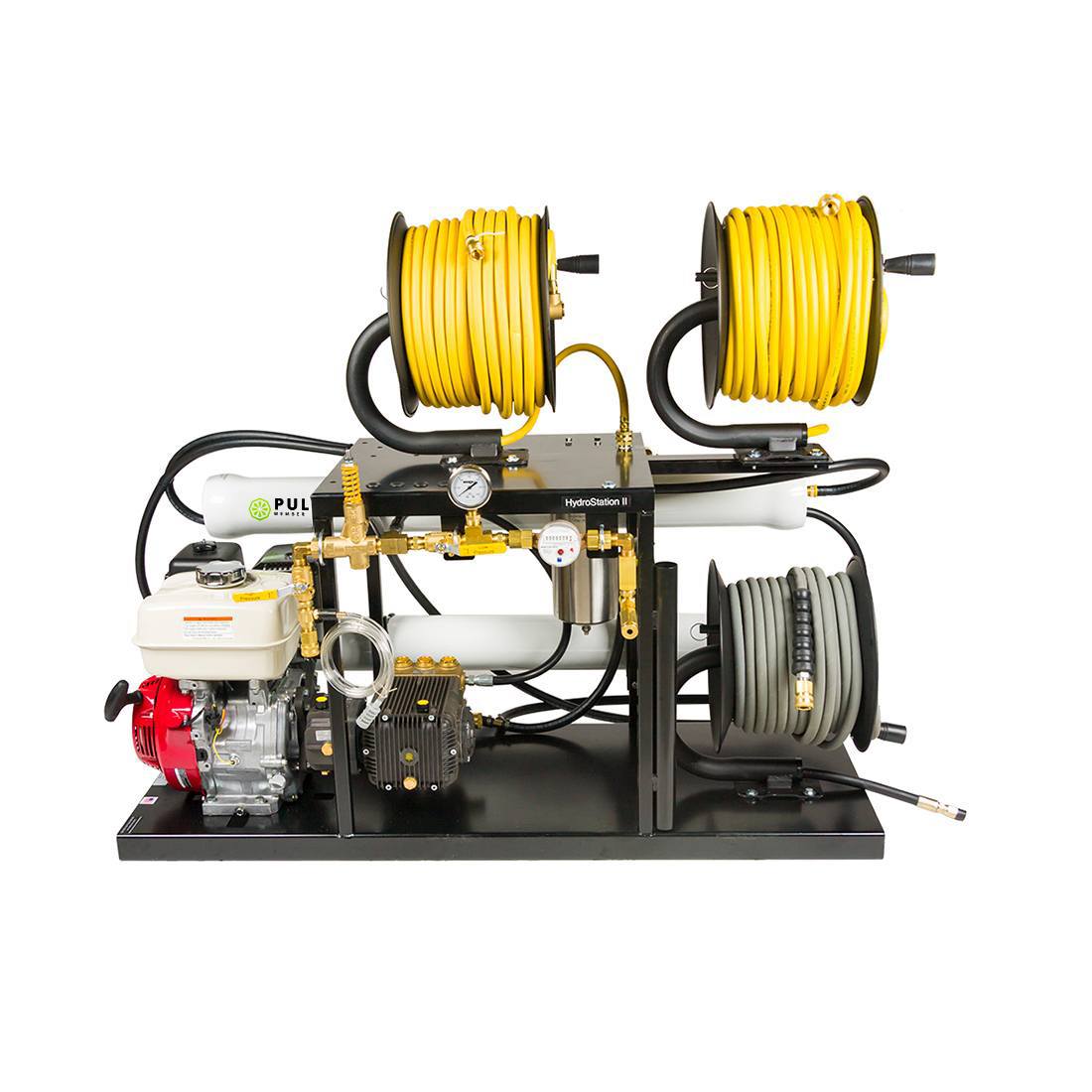

• Hose reels for both high-pressure and low-pressure.
• Pressure washer spray gun (High-Pressure Spray Nozzles) with storage manifold
• Multiple RO membranes for extra water production
• Storage tanks from 235-1,000 Gallons

*Upgrades have additional costs that can be quoted on request.

Productivity:

• RO Membranes: 4 x 40
• RO product water flow: 4 GPM
• RO feed water pressure: 160 PSI
• RO feed water flow: 10 GPM
• Pump suction hose: 1 1/2" ID
• Pump: AR Direct Drive Gear Box
• Tank feed required: Yes
• Gas engine: GX290 (9 HP)
• Pressure cleaning: 8.7 GPM / 1500 PSI
• Weight: 185 lbs/84 kg
• Hose reel mounts: 3
