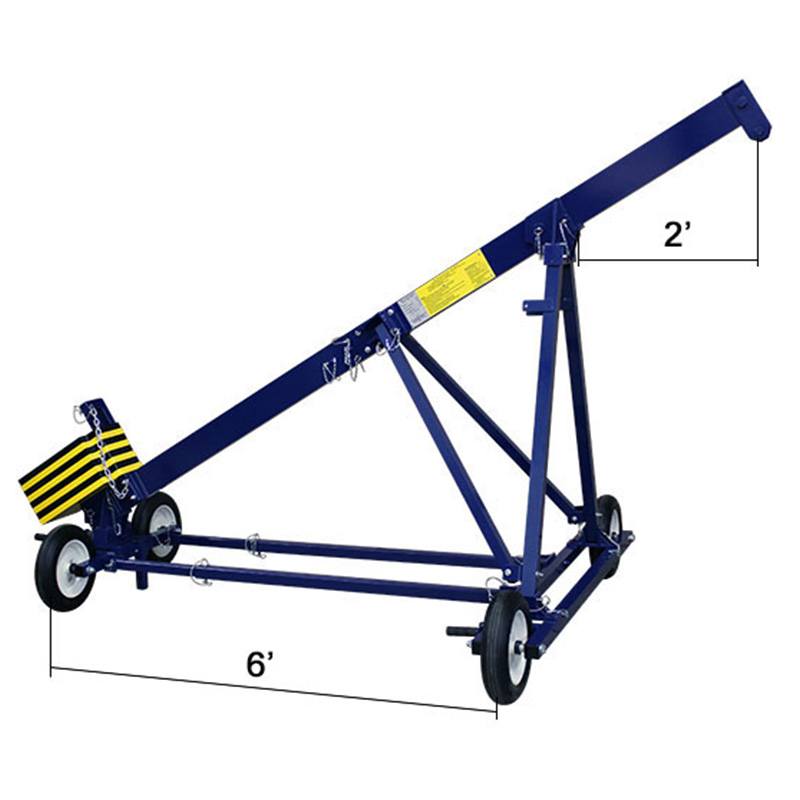

About the MIO Rolling Roof Rig - 2 Foot x 6 Foot

MIO Rolling Roof Rigs are among the most durable and safest in the world. All joints are trussed and welded for maximum strength; made from aluminum. Included are stainless steel quick connect pins for fast assembly. These rigs are known for their easy and fast assembly and ease of moving to the location. To help work around obstacles on the roof, the lower stabilization beams can easily detach and reattach in seconds.

Specs:

• Outreach - 2'
• Distance from front to rear wheels - 6'
• Counterweight - 336 lbs (8@42)
• Unit weight - 150 lbs
• Maximum working load - 250 lbs
• Working load w/ tools - 300 lbs
• Tested Static Load (CAL OSHA) - 1000 lbs
• Locking breaks - front and rear wheels - 2"
• Forged eyebolts for tie-back diam. - 1/2"
• Counterbalance safety factor - 4:1
• Distance from roof to anchor point 65"
• Inside parapet wall clearance at shoulder - 55"
• 13" diameter Pneumatic Rubber tires - 4
